# Using Nginx to Configure a Reverse Proxy / Bind a Domain

After running MrDoc with uWSGI/Gunicorn/Docker, MrDoc can be accessed directly in the form of `IP:port`.

However, we recommend using Nginx for reverse proxying.

You can add the following `server` section to the http block in the `nginx.conf` file and reload the configuration:

```bash
server {
    listen your_port;
    server_name your_domain_or_IP;

location / {
		proxy_pass http://127.0.0.1:10086;
		proxy_set_header Host $host;
		proxy_set_header X-Real-IP $remote_addr;
		proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
		proxy_set_header REMOTE-HOST $remote_addr;
		proxy_set_header X-Forwarded-Proto  $scheme;
		#Set Nginx Cache
		add_header Cache-Control no-cache;
		add_header X-Cache $upstream_cache_status;
		proxy_ignore_headers Set-Cookie Cache-Control expires;
		proxy_read_timeout 300;
        # Streaming video processing
        proxy_set_header Range $http_range;
        proxy_set_header If-Range $http_if_range;
        add_header X-Accel-Buffering no;

}
}
```

## Baota Panel Operations

### 1. Add a Website

![](http://file.mrdoc.pro/mrdoc-oss/img/2023/06/14/2023-06-14_214021_2165150.36459569683779425.png)

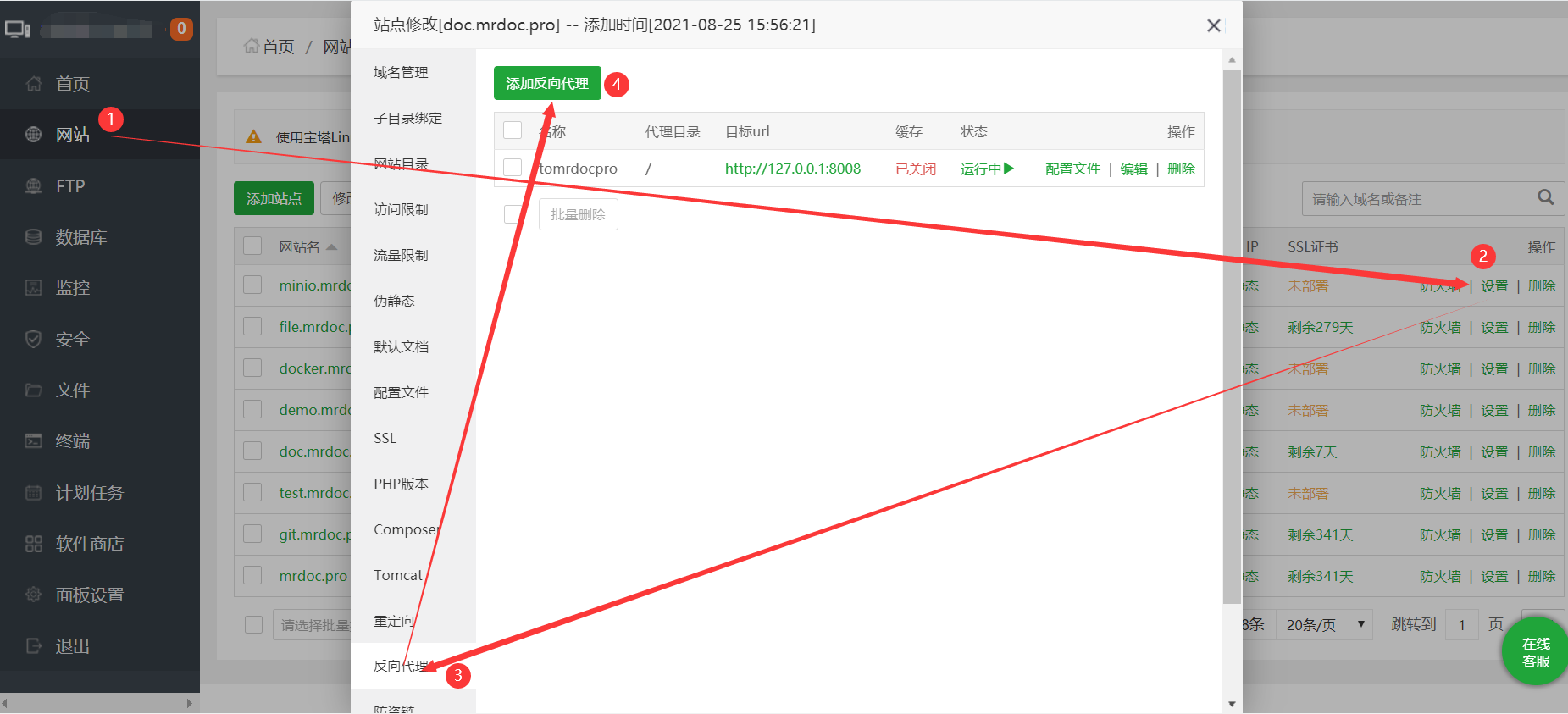

### 2. Add a Reverse Proxy

![](/media/202208/2022-08-13_095327_2048530.29644109425099363.png)

### 3. Configure the Reverse Proxy

After adding the reverse proxy, we recommend that you continue to add the following configuration in the `location / {}` section of the configuration file:

```
    proxy_set_header Host $host;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header REMOTE-HOST $remote_addr;

    proxy_set_header  X-Forwarded-Proto  $scheme;
    add_header X-Cache $upstream_cache_status;
    proxy_set_header Range $http_range;
    proxy_set_header If-Range $http_if_range;
    # Streaming video processing
    proxy_set_header Range $http_range;
    proxy_set_header If-Range $http_if_range;
    add_header X-Accel-Buffering no;
```

The functions of the relevant configurations:

- `proxy_set_header Host $host;`: Ensures that when MrDoc receives a request, it can see the domain requested by the client.
- `proxy_set_header X-Real-IP $remote_addr;`: Passes the client's real IP to MrDoc.
- `proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;`: Records the list of IPs through which the client passed via the proxy.
- `proxy_set_header X-Forwarded-Proto $scheme;`: Passes the protocol used by the client (HTTP or HTTPS) to MrDoc.
